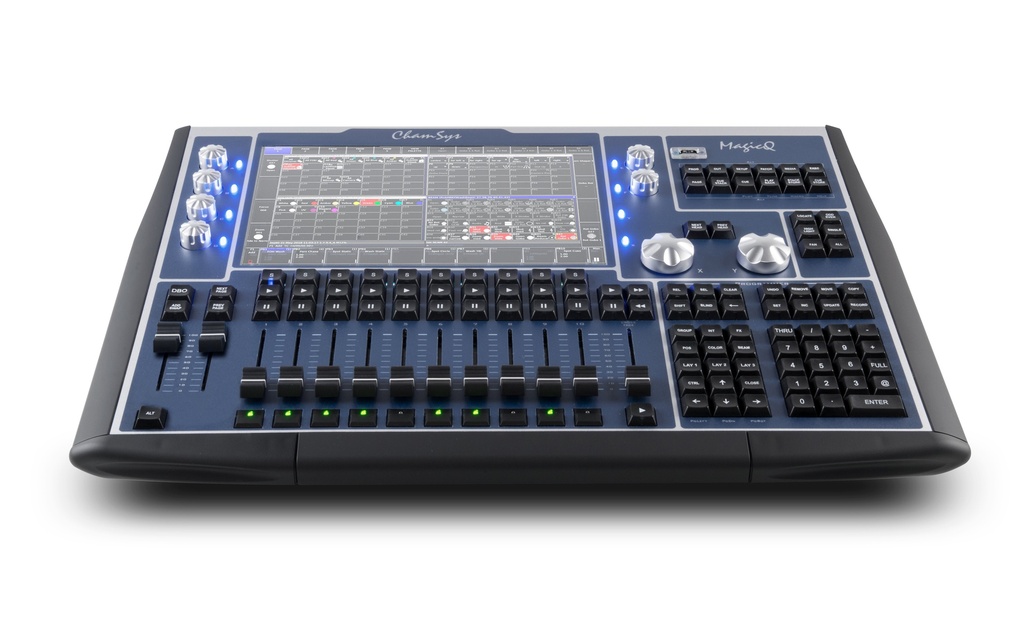

The ChamSys MagicQ MQ80 is a compact lighting console for programming and running spots, moving heads and LED fixtures live. It combines a built-in screen with physical faders and encoders so an operator can work quickly.
Key features
- Built-in 12-inch screen, external HDMI monitor supported
- 10 playback faders, 20 execute buttons and 8 attribute encoders
- 4 direct DMX outputs and up to 48 universes via Art-Net/sACN
- Built-in UPS battery keeps the console running through a power dip
- MIDI, audio input and LTC timecode
Typical uses
- Concerts and theatre shows
- Corporate events and conferences with complex lighting plots
- Controlling moving heads and LED fixtures
| Universes | 48 via network (Art-Net/sACN/Pathport) |
|---|---|
| Direct DMX outputs | 4 (RDM) |
| Playback faders | 10 |
| Execute buttons | 20 |
| Attribute encoders | 8 |
| Built-in screen | 12-inch |
| External monitor | HDMI, up to 1920 x 1200 |
| Network ports | 4 |
| USB ports | 6 |
| Other | MIDI, audio input, LTC timecode |
| Power | 110-240 V AC, powerCON TRUE1, built-in UPS |
| Dimensions (w x h x d) | 570 x 110 x 405 mm |
| Weight | 8 kg |
