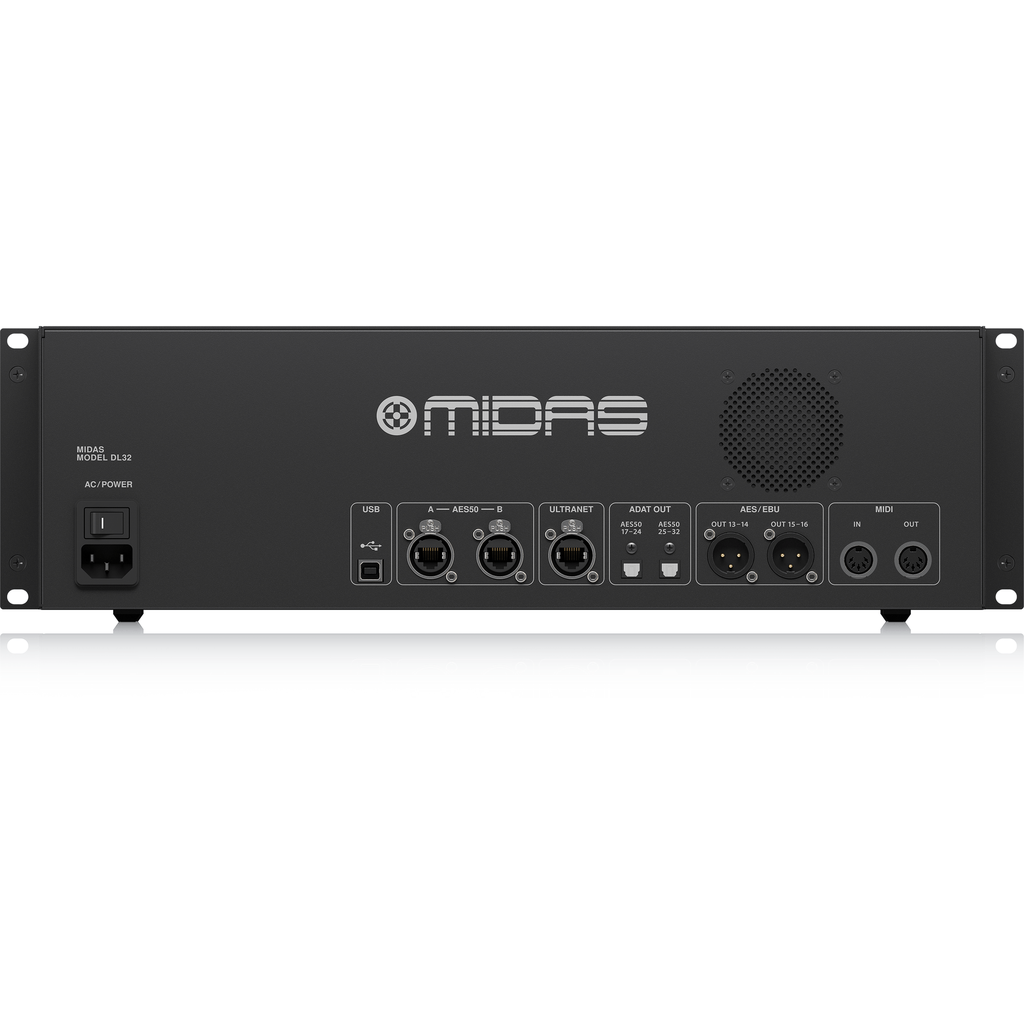

The Midas DL32 is a compact stage box that sits on stage and sends all microphones and instruments digitally to the mixing console at front of house. Thanks to its AES50 network link, a single CAT5 cable replaces a heavy analogue multicore.
Key features
- 32 inputs with remote-controlled Midas mic preamps and 48 V phantom power
- 16 analogue outputs, for example for monitors or in-ear transmitters
- Dual AES50 ports for daisy-chaining or redundancy
- ADAT and AES/EBU outputs and an ULTRANET port for personal monitoring
- 19-inch rack format, 3U
Typical uses
- Live concerts and band shows
- Conferences and corporate events with many microphones
- Expanding a Midas M32 or Behringer X32 system
| Inputs | 32 mic/line (XLR) |
|---|---|
| Outputs | 16 analogue |
| Phantom power | 48 V per input |
| Network | 2 x AES50 (RJ45) |
| Digital outputs | 2 x ADAT optical, AES/EBU |
| Personal monitoring | ULTRANET |
| Conversion | 24-bit, 44.1/48 kHz |
| Format | 19-inch, 3U |
| Dimensions (w x h x d) | 483 x 138 x 242 mm |
| Weight | 5.7 kg |
| Power consumption | 55 W |
