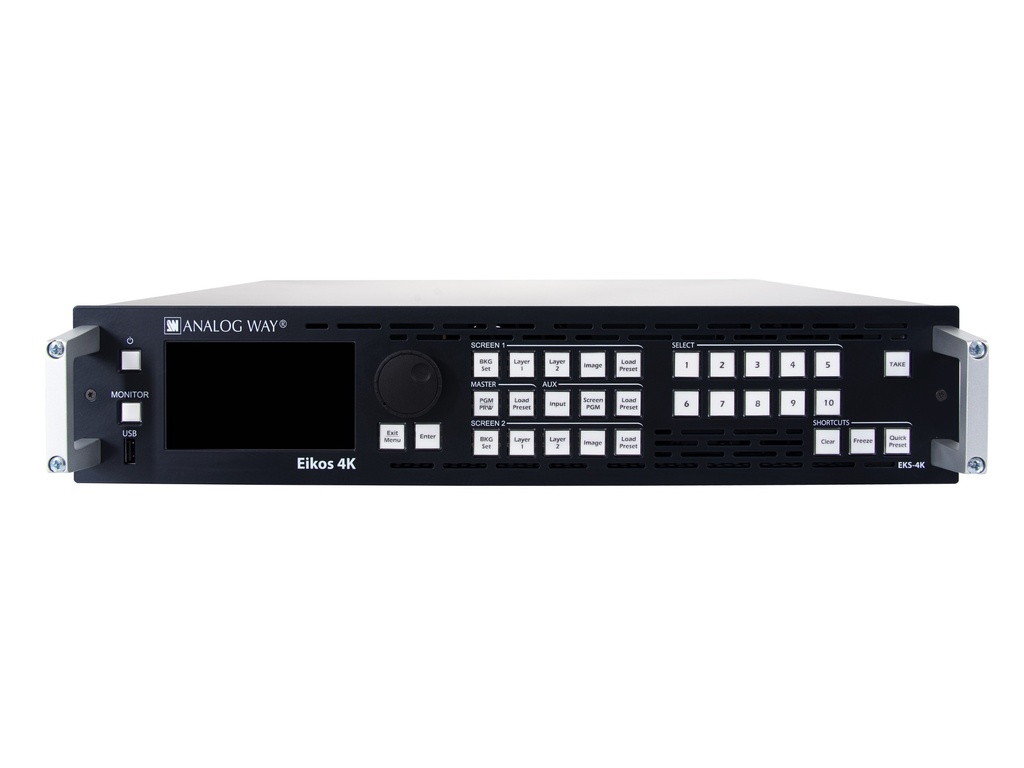

4K60 multi-layer video mixer and seamless presentation switcher with 10 inputs: 4x HDMI 2.0, 2x DisplayPort 1.2, 2x 12G-SDI and 2x HDMI 1.4/3G-SDI. Two 4K60 program outputs (HDMI 2.0 + 12G-SDI) and a dedicated multiviewer output. Usable as edge blending over two outputs, as 2 independent screens or as 1 program + 1 AUX. Up to 4 layers per screen plus background and logo, 10-bit 4:4:4 processing, HDR. Control via front panel, web interface or remote panel; 2U rack, 7.6 kg.
