Description:

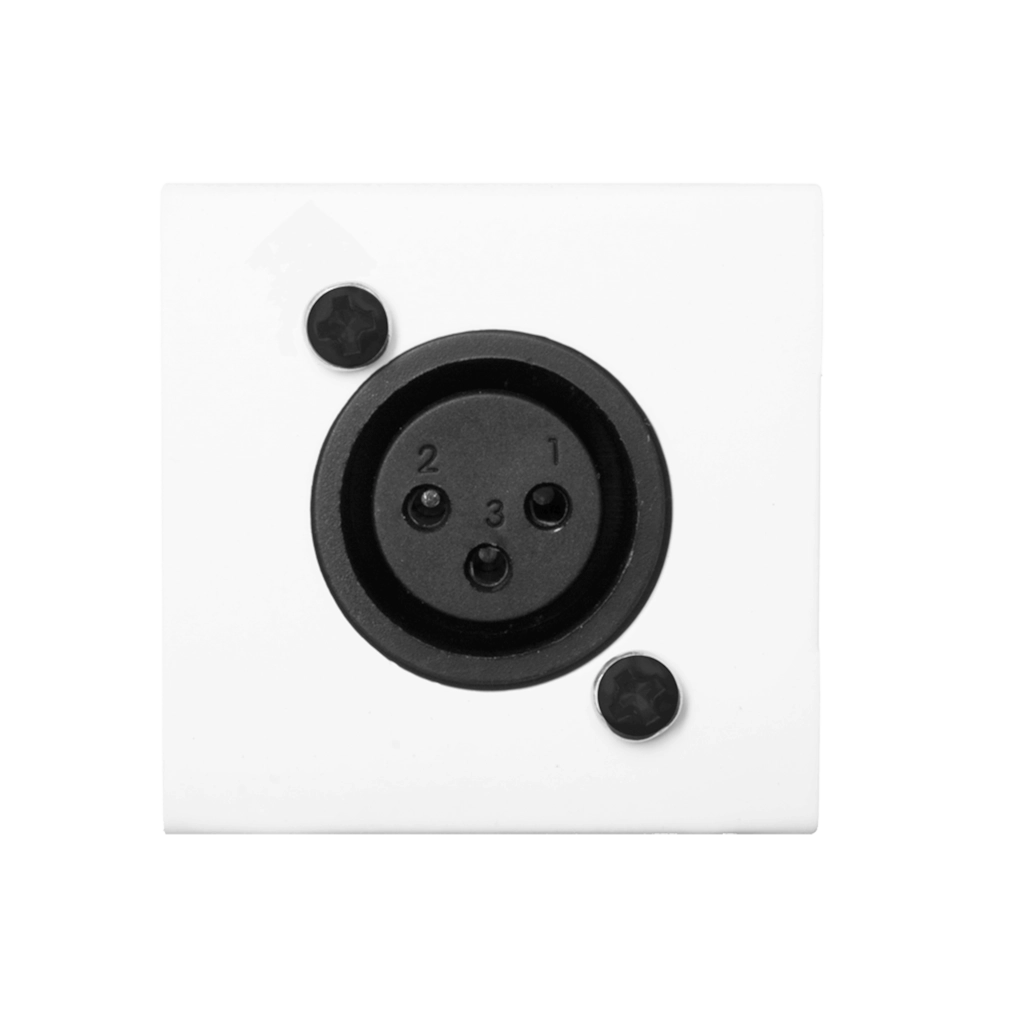

The WMI are flush mountable Wall Microphone Input Units, which can be integrated into several kinds of installation materials for system integration. They are fitted with a Female XLR input connector on the front side and a terminal block connector on the rear side. The signal which is applied to the input connection is converted to a differential signal with increased voltage levels. This way, the signal is made insensitive to interference and noise and can be transferred over a long distance without any loss of quality. This allows reliable signal transmission up to 300 meters over CAT5E (or better) twisted pair cabling. A jumper on the rear side allows enabling of 15 Volts phantom power. It should be used in combination with a matching device on the receiver end.
Highlights:
Product Features:
- Dimensions: 45 x 45 x 50 mm (W x H x D)
- Construction: ABS
- Mounting: 45 x 45 mm
- Colours: Black (RAL9005) (WMI18/B)
- Colours: White (RAL9010) (WMI18/W)
- Accessories: None
- Accessories: None
Downloads:
Brand: AUDAC
