Description:

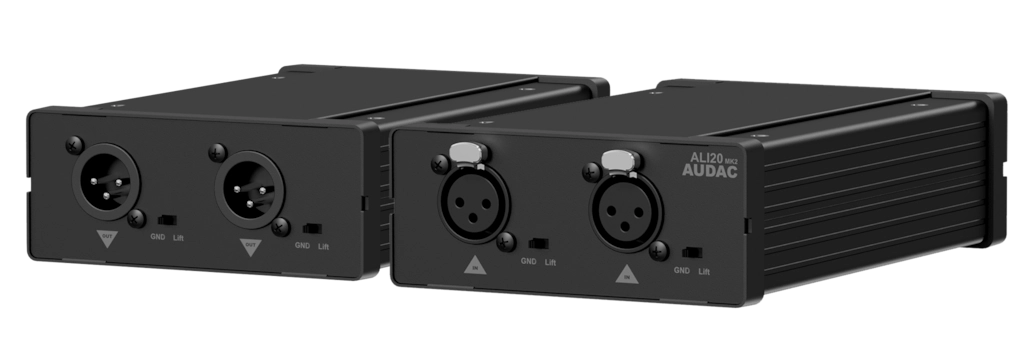

The ALI20/25 are audio isolators designed to isolate audio devices from each other. In most cases, they are used to avoid hum caused by ground loops in audio systems. They offer a complete passive solution for the isolation of a stereo balanced audio signal. It features dual XLR in- and output connectors and a ground lift switch. The in- and output phase are matching. The ALI20/25 are both built with an audio transformer that has a turns ratio of 1:1 and an impedance of 600 Ohm. The difference is the shielding of the transformer. The ALI20 contains a shielded transformer which complies with the requirements of most standard applications, while the ALI25 contains a MU-metal shielded transformer which can be used when regular shielding becomes inadequate. This ensures the best results in even the highest EMI polluted environments.
Highlights:
- S-box™ modular multifunctional enclosure
Product Features:
- Colours: Black
- Dimensions: 96 x 43 x 108 mm (W x H x D) (ALI25)
- Dimensions: 108 x 44 x 165 mm (W x H x D) (ALI20MK2)
- Weight: 0.270 kg (ALI25)
Downloads:
- Product manual
- Technical drawing - ALI20MK2
- Technical drawing - ALI20MK2
- CE certificate - ALI25
- CE certificate - ALI20MK2
Brand: AUDAC
