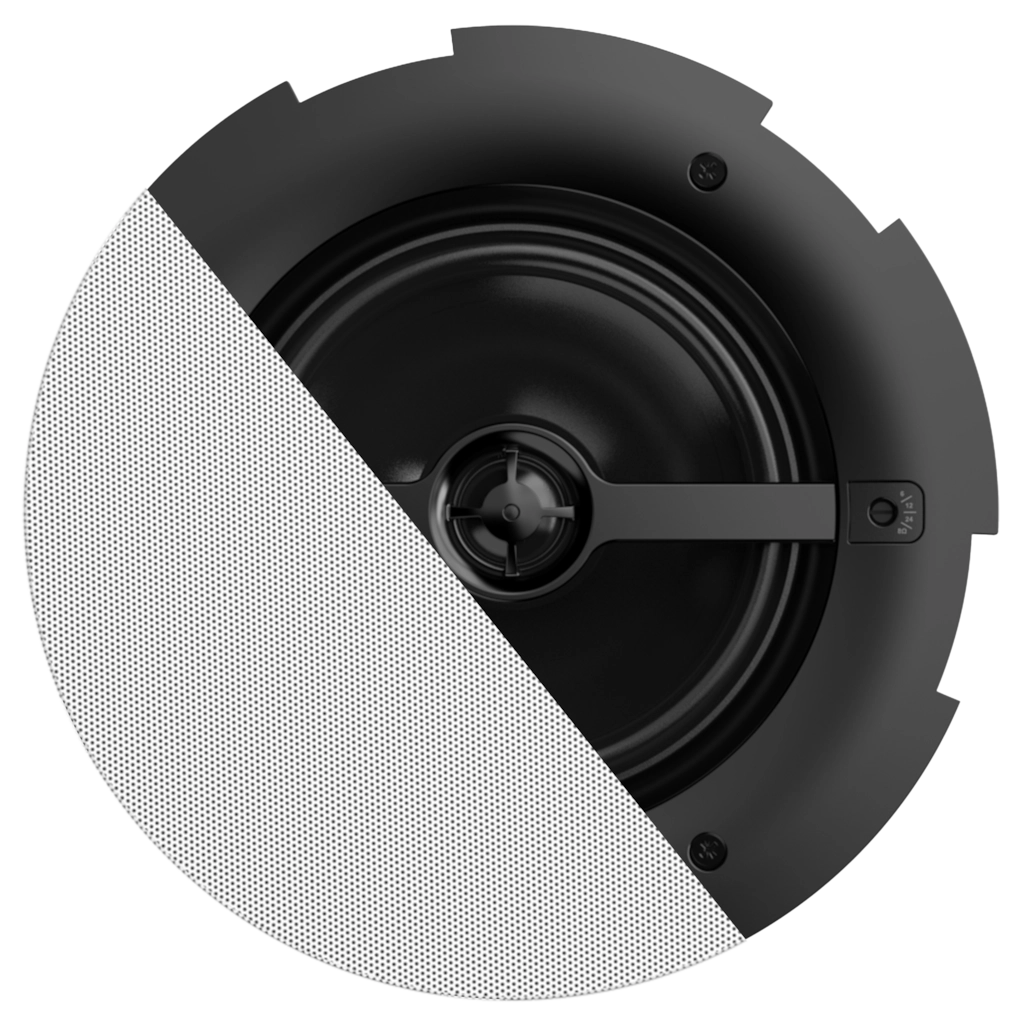

AUDAC - CALI660I/W - Safelatch™ 2-way 6.5" ceiling speaker with TwistFix™ grill - White version (RAL9016)
Ce produit n'est plus disponible.
Description:
The CALI660 is a 2-way ceiling speaker with rear dome, constructed using a 6.5” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance up to 145°.
The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 60W, 30W, 15W and an 8 Ohm bypass connection.
What is new with CALI660II?
An enhanced weatherproof and humidity-proof coating on the speaker cone, making them even more durable for challenging open-air environments. When combined with the GLI optional grills, these updated CALI models now receive our official WeatherTreated outdoor rating, giving you full confidence in any installation.
Highlights:
- Secure SafeLatch™ system
- Excellent off-axis performance (up to 145°)
- Unique TwistFix™ grill design
- Borderless grill design
- Rotary switch for 16W, 32W, 64W and an 8 Ohm tappings
- Terminal block connection
- Shallow built-in depth (132 mm)
- Multi-tapping 70V / 100V line transformer
Product Features:
- Cut-out measurement: 220 mm (Ø)
- Dimensions: (CALI660) 242 x 120 mm (Ø x D)
- Built-in depth: (CALI660) 120 mm
- Operating temperature: -20 °C ~ 60 °C
- Construction: ABS and powder coated steel
- Mounting: SafeLatch™ mounting system
- Weight: 3.42 kg
- Dimensions: (CALI660I & CALI660II) 242 x 138 mm (Ø x D)
- Built-in depth: (CALI660I & CALI660II) 132 mm
- Construction: Additional weatherproof & humidity proof coating to the speaker cone (CALI660II)
Downloads:
- Installation manual - FR
- Installation manual
- Technical drawing
- Technical drawing
- 3D-DWG
- 3D-PDF
- STL File
- STEP File
- OBJ File
- Acoustical data graphs - CALI660
- Acoustical data graphs - CALI660I
- EASE Focus - CALI660I
Brand: AUDAC
