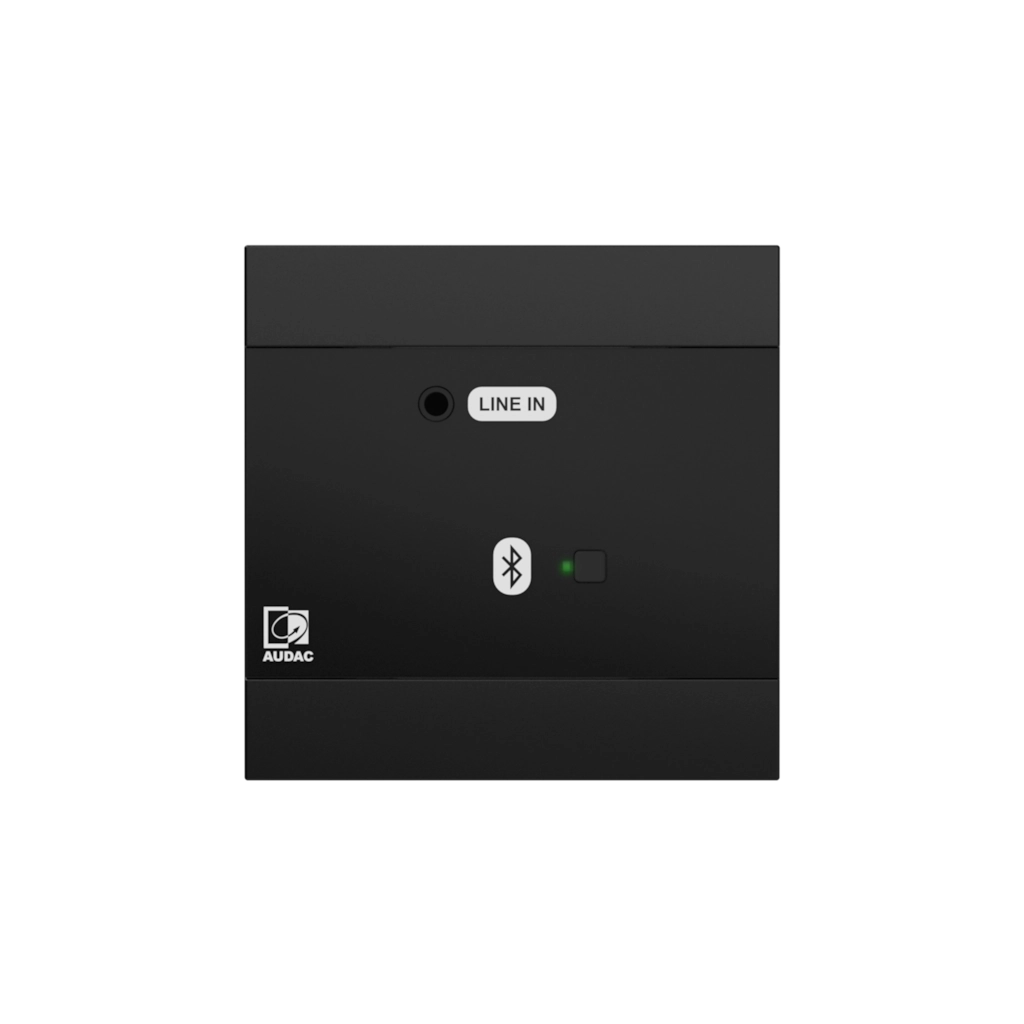

AUDAC - NWP300/B - Network input panel - BT + 3.5 mm jack (4 CH) - Black version - EU-style standard
Description:
The NWP300 is a Dante™/AES67 network input panel, featuring a single 3.5 mm stereo jack stereo input connection and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP300 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with EU-style standard or 1-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Highlights:
- 3.5mm stereo jack input
- 4 x 4 channels Dante™ & AES67
- All-in-one mixing & sound processing
- Integrated Bluetooth receiver (Version 4.2)
- Ultra efficient cooling
- Superior sound quality & low latency
Product Features:
- Construction: ABS
- Front finish: Elegant ABS front panel with glass
- Dimensions: 80 x 80 mm (W x H) (Remote wall panel)
- Colours: White (RAL9003) (NWP300)
- Colours: Black (RAL9005) (NWP300/B)
- Compatible devices: Any Dante™/AES67 compatible audio device
- Installation standard: Compatible with EU installation materials
- Installation standard: 1-gang US standard (NWP300US)
Downloads:
- Required Port Numbers
- Hardware manual
- Technical drawing - US version
- Technical drawing - US version
- Technical drawing
- Technical drawing
- Firmware release notes
Brand: AUDAC
