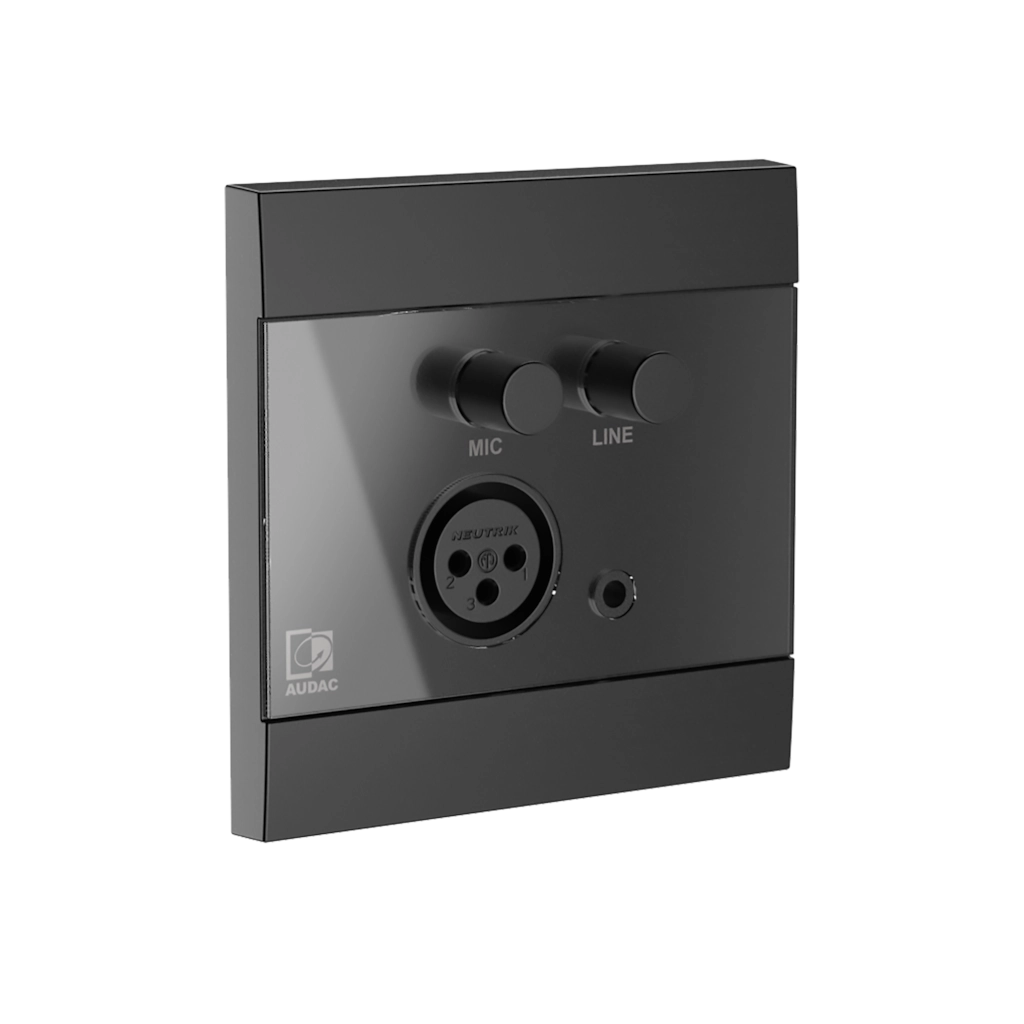

AUDAC - WP205/B - ARES5A wall panel - Microphone & line input - 80 x 80 mm - Black version - EU-style standard
Description:
The WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
The WP205 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with Acrylic (PMMA) glass finish, it will blend into any environment.
Highlights:
- Elegant design to blend in with any environment
- Compatible with EU (80x80 mm) installation materials
- Signal transmission over twisted pair (CAT5E) or better cabling
- Signal transmission insensitive for interference and noise
Product Features:
- Dimensions: 80 x 80 mm (W x H) (Remote wall panel)
- Colours: Black (RAL9005) (WP205/B)
- Colours: White (RAL9003) (WP205/W)
- Front finish: Elegant ABS front panel with Acrylic (PMMA) glass finish
- Accessories: None
- Accessories: None
- Accessories: None
- Installation standard: Compatible with EU installation materials
- Installation standard: 1-gang US standard (WP205US)
Downloads:
- Product manual
- Technical drawing - US version
- Technical drawing - US version
- Technical drawing
- Technical drawing
- STL File
- 3D-PDF
- 3D-DWG
- STEP File
- AUDAC - WP2XX series
Brand: AUDAC
