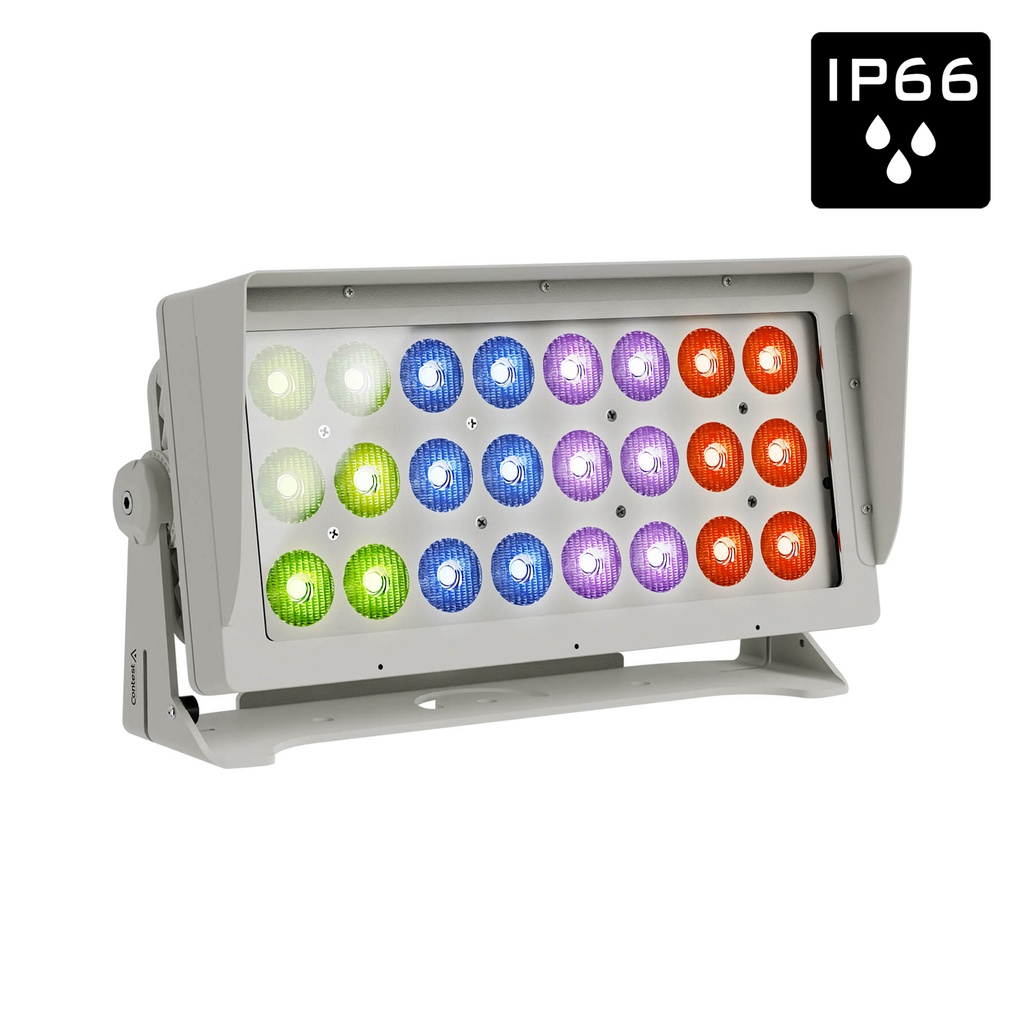

- 24 x 20W LEDs four colors RGBL (Red, Green, Blue, Lime)
- Double structured lenses for perfect beam distribution
- Symmetrical lenses with 30° aperture
- Brightness: 6352 lm – 1080 lux at 5m

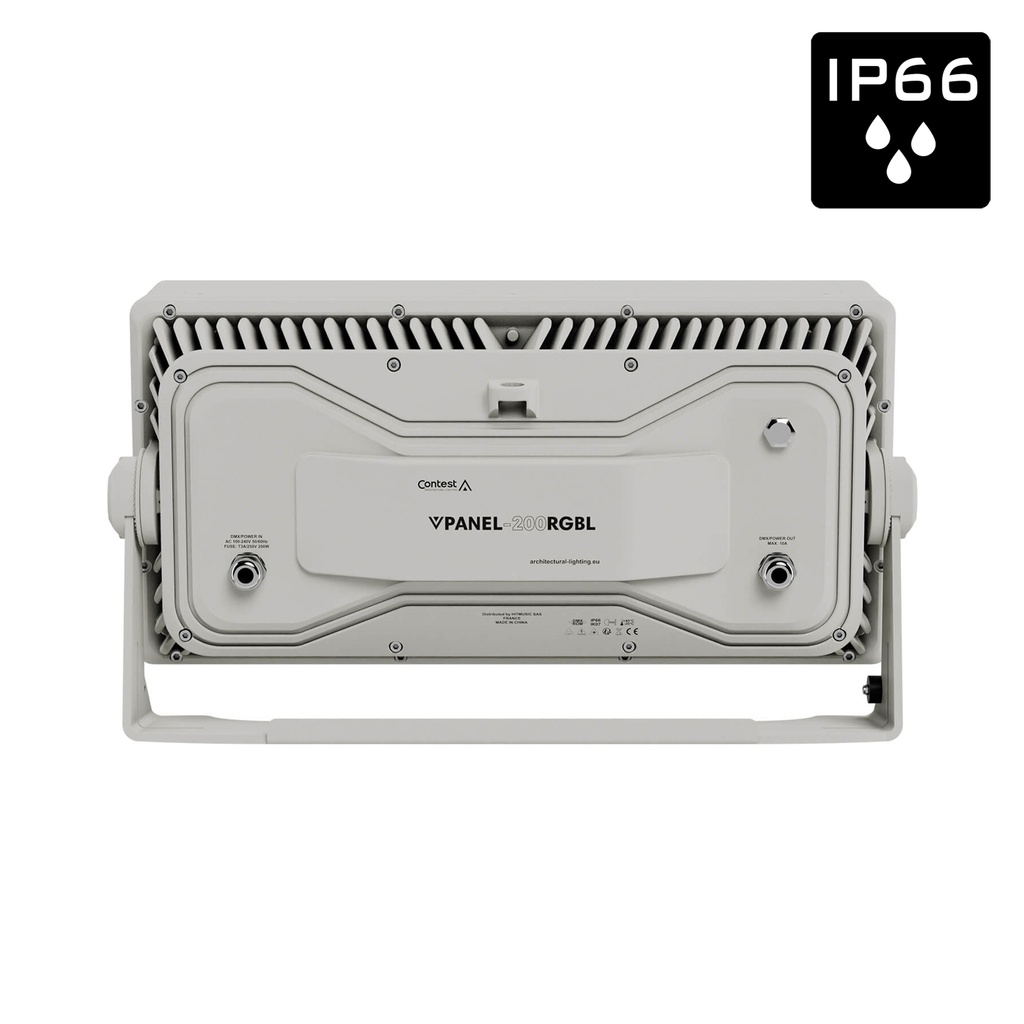

- DMX/Power connections via hybrid IN and OUT cables with IP67 plugs.
- External VRDM-Control unit for RDM parameterization.
- Compatible with RDM consoles on certain parameters.
- DMX control protocol on 2 to 20 channels depending on the selected mode.
- Power supply: 110-240V/50-60 Hz
- Power consumption: 207 W
- Selectable refresh rate from 900 Hz to 3600 Hz
- Cooling: convection.
- Finishes: cast aluminium, epoxy-painted grey-white RAL 9002.
- IP66 protection rating: resists dust and water splashes from all directions.
- Shock resistance IK07: protected against a mechanical shock of 2 joules, i.e. an object weighing 500 g dropped from a height of 40 cm.
- Sealed diaphragm depressurization valve.
LINK FOR FULL INFORMATION AND USER MANUAL: VPANEL-200RGBL
