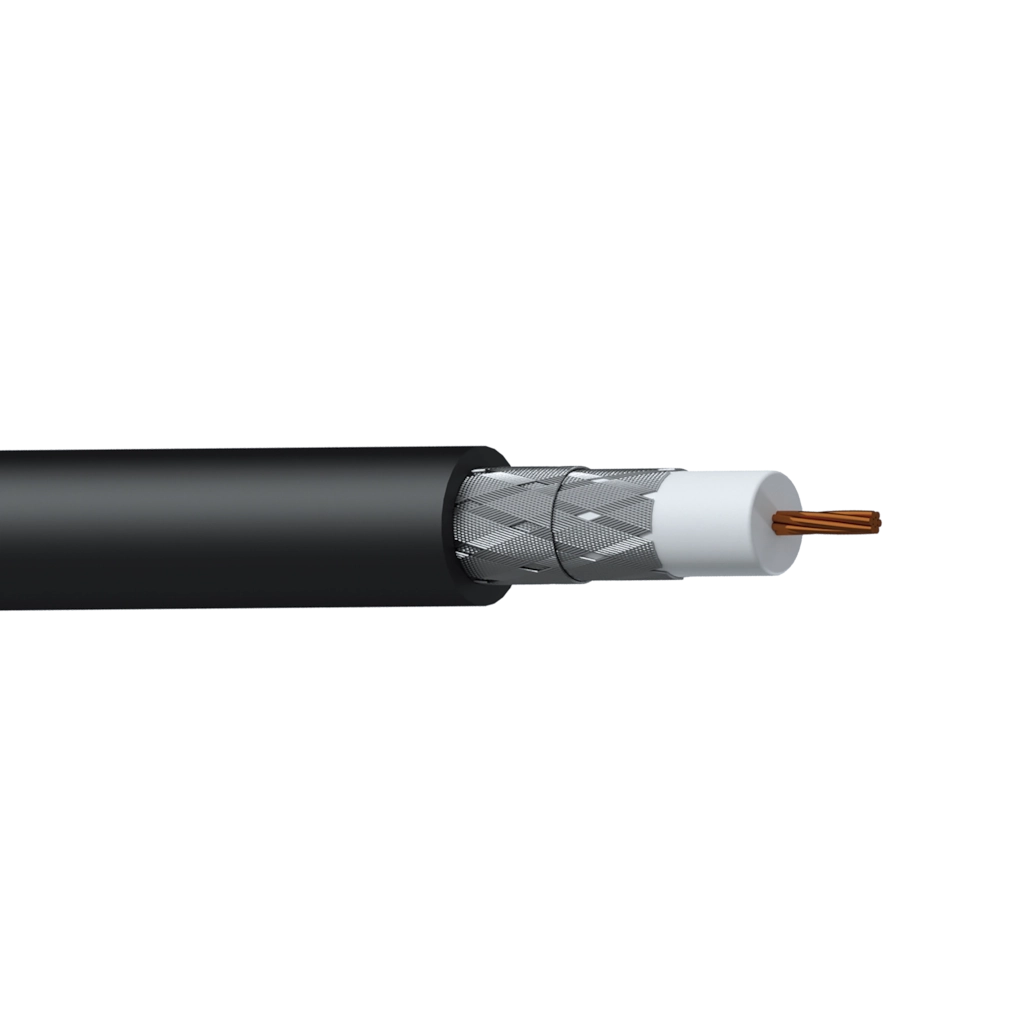

PROCAB-rental - PCX160/1 - 3G SDI coaxial video cable - RG6/U - flex 0.65 mm² - 19 AWG - HighFlex™ - 100 m plastic reel
Description:
The PCX160 is an RG6/U coaxial video cable specifically designed for digital SDI, HD-SDI and 3G-SDI video transmissions in mobile applications. Its Highflex™ PVC outer jacket in combination with other high-grade materials guarantee a great flexibility, long service life span and accurate signal transmission under all circumstances. The conductor section of 19 AWG is constructed using 7 strands of high purity copper with a thickness of 0,345 mm, resulting in an overall section of 0,65 mm² surrounded by a foamed polyethylene isolator. The dual braided overall shielding consists of two individual layers with a coverage percentage of 95%, guaranteeing the best possible immunity against noise and interference. Compatible with Neutrik NBNC75BRU11.
Highlights:
- Highflex™ solid & flexible jacket
- HD-SDI up to 85 meter
- 3G-SDI up to 58 meter
Product Features:
- Application: Rental & MI
- Series: Bulk & Accessories
Downloads:
Brand: PROCAB-rental
