Description:

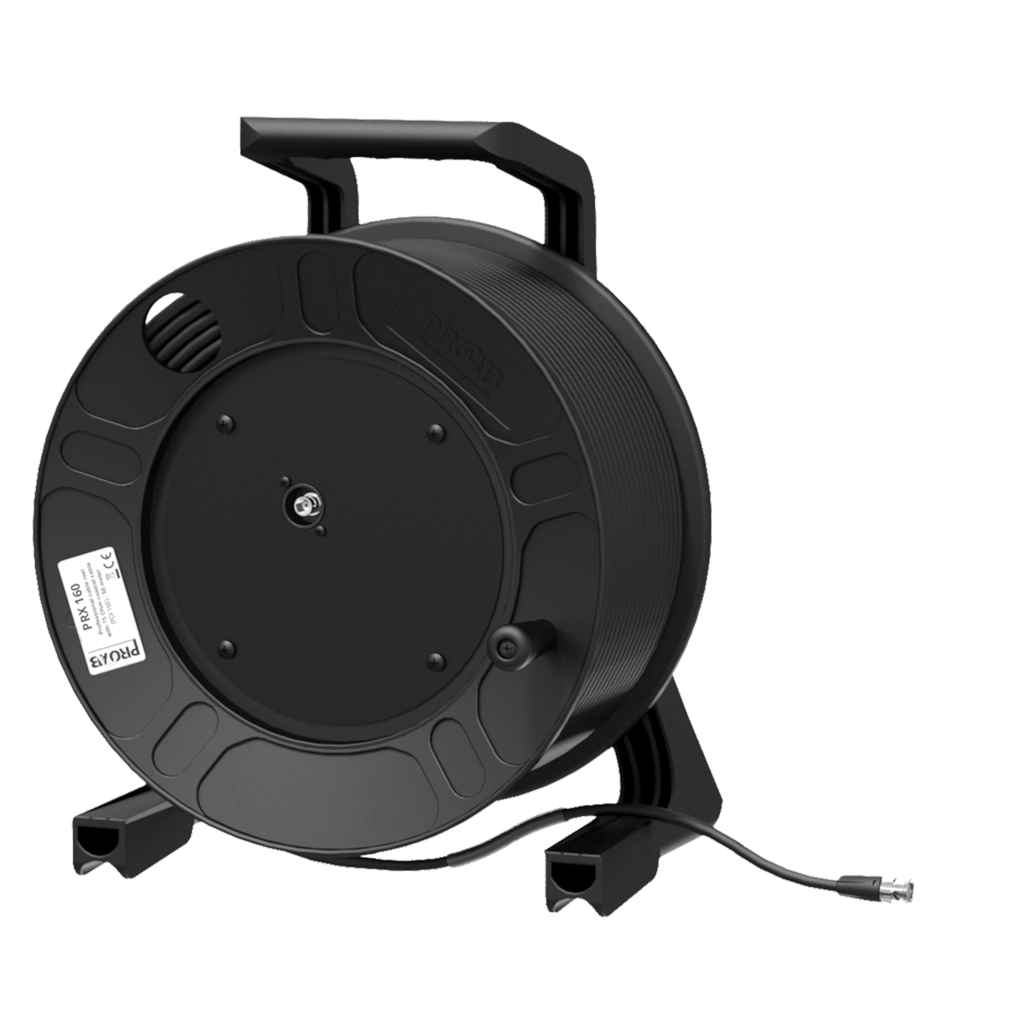

The PRX160 is a HighFlex™ 75Ω coaxial video cable (PCX160) assembled on a lightweight, extremely strong and impact resistant reel (CDM310). The cable is solid but flexible constructed featuring a stranded high purity copper conductor (19 AWG), which is surrounded by a foamed polyethylene isolator. The shielding consists of a dual braiding which offers a high immunity against noise and interference caused by external devices, while offering a high flexibility and reliability for mobile applications. The cable end is terminated using a male BNC connector while chassis side is fitted with a female BNC connector. It can be used for a wide variety of mobile applications such as analogue video interconnections as well has HDTV digital SDI and HD-SDI.
Highlights:
- 7 mm (Ø) outer diameter
- Highflex™ solid & flexible jacket
- Double braided shielding
- 19 AWG stranded conductors
- HD-SDI up to 85 meter
- 3G-SDI up to 58 meter
- Oxygen free copper
- 60 mm transparent shrink sleeve
Product Features:
- Application: Rental & MI
- Series: Prime Series
Downloads:
Brand: PROCAB-rental
