Description:
The ARCHI Series combines architectural elegance with groundbreaking audio performance. Designed for bars, restaurants, hospitality, and residential applications, these compact subwoofers deliver immersive sound with minimal visual impact.
Featuring innovations like AcoustiMesh for acoustic neutrality, AeroVent for noise-free bass performance, and WeatherTreated capabilities, the ARCHI Series excels indoors and outdoors. With low-frequency extensions down to 26Hz, flexible mounting options, and durable materials, the ARCHI Series redefines low-frequency fidelity, offering powerful, precise bass in a discreet, stylish design.

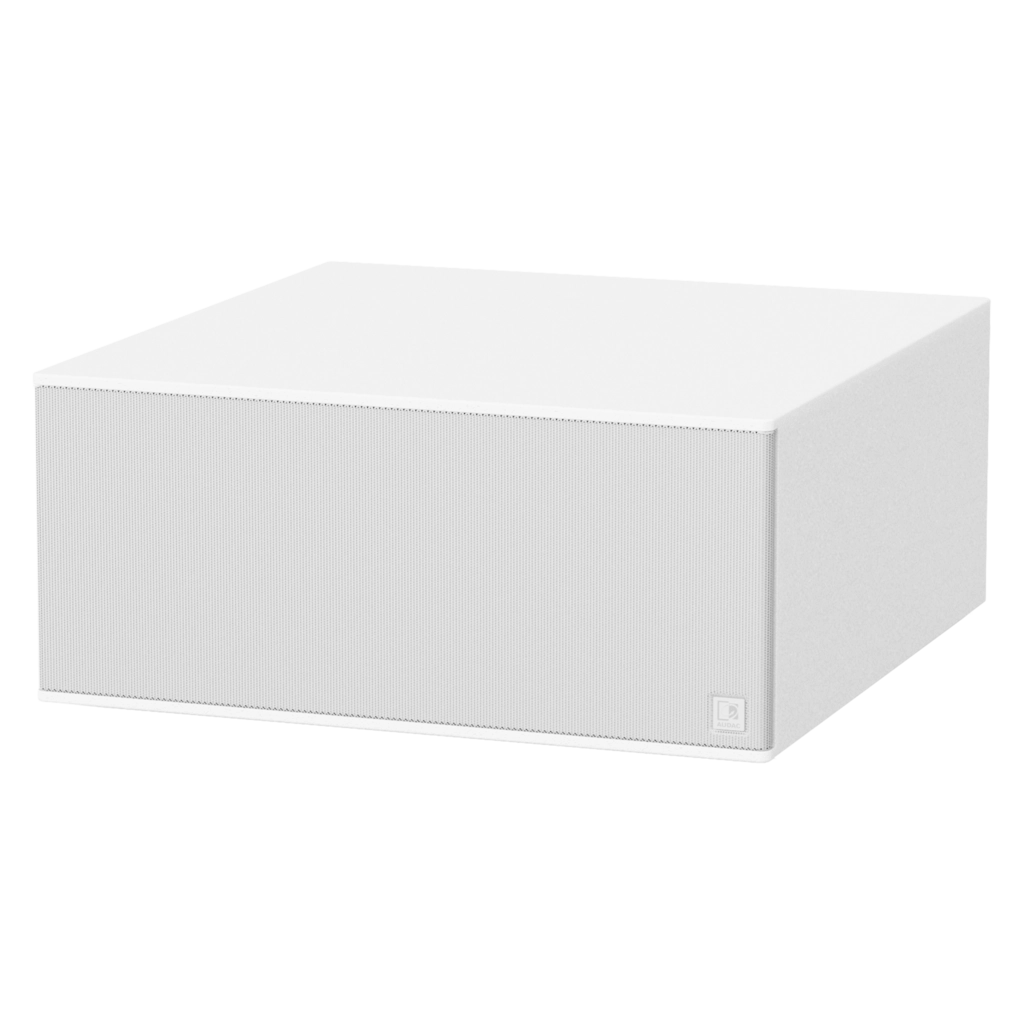

ARCHI10X: Ultra-Resilient Performance
The ARCHI10X is built to deliver exceptional performance with unparalleled durability. Featuring an extremely rigid chassis and inner framing, this model ensures stability even under the most demanding conditions. Its dual silicone spiders allow for extended excursion capability, while the copper demodulating ring minimizes distortion, ensuring crystal-clear low-frequency output. The ARCHI10X also incorporates a highly linear Force Factor figure and a very high-temperature rate voice coil, enabling consistent, reliable performance at high power levels. Pending extensive salt spray and IP testing, the ARCHI10X/OB promises enhanced resilience in challenging outdoor environments. Designed for precision and power, this model sets a new standard for architectural subwoofers, delivering impactful sound with robust reliability.
Highlights:
- 700 Watt program power
- Precision with immersive infra-sub performance
- AeroVent - Exponential low noise vent design
- Low frequency extension down to 26Hz without processing
- 117 dB of Max SPL (continuous)
- Architecturally discreet and compact design
- Tailor-made high-excursion driver for superior performance
- Flexible ceiling & wall mount option
- Weather treated model available
- Weather resistant aluminum cone with demodulation ring
- Marine grade plywood and Dura-Polyurea coating
- Band pass design
Product Features:
- Dimensions: 540 x 234 x 558 mm (W x H x D) (excluding feet)
- Dimensions: 540 x 246 x 558 mm (W x H x D) (including feet)
- Weight: 25.5 kg
- Operating temperature: -20 °C ~ 70 °C
- Construction: 15 mm Multiply Plywood with multi-layer Polyurea coating
- Front finish: AcoustiMesh
- Colours: White (ARCHI10X/W)
- Colours: Black (ARCHI10X/OB)
Downloads:
- AUDAC New products 2025
- Product manual
- Technical drawing
- Technical drawing
- AUDAC - New Products 2025
- EASE Focus
- AUDAC - New Products 2025
Brand: AUDAC
