AUDAC - WP225/W - Universal wall panel - Microphone, line & Bluetooth receiver - 80 x 80 mm - White version - EU-style standard
Description:

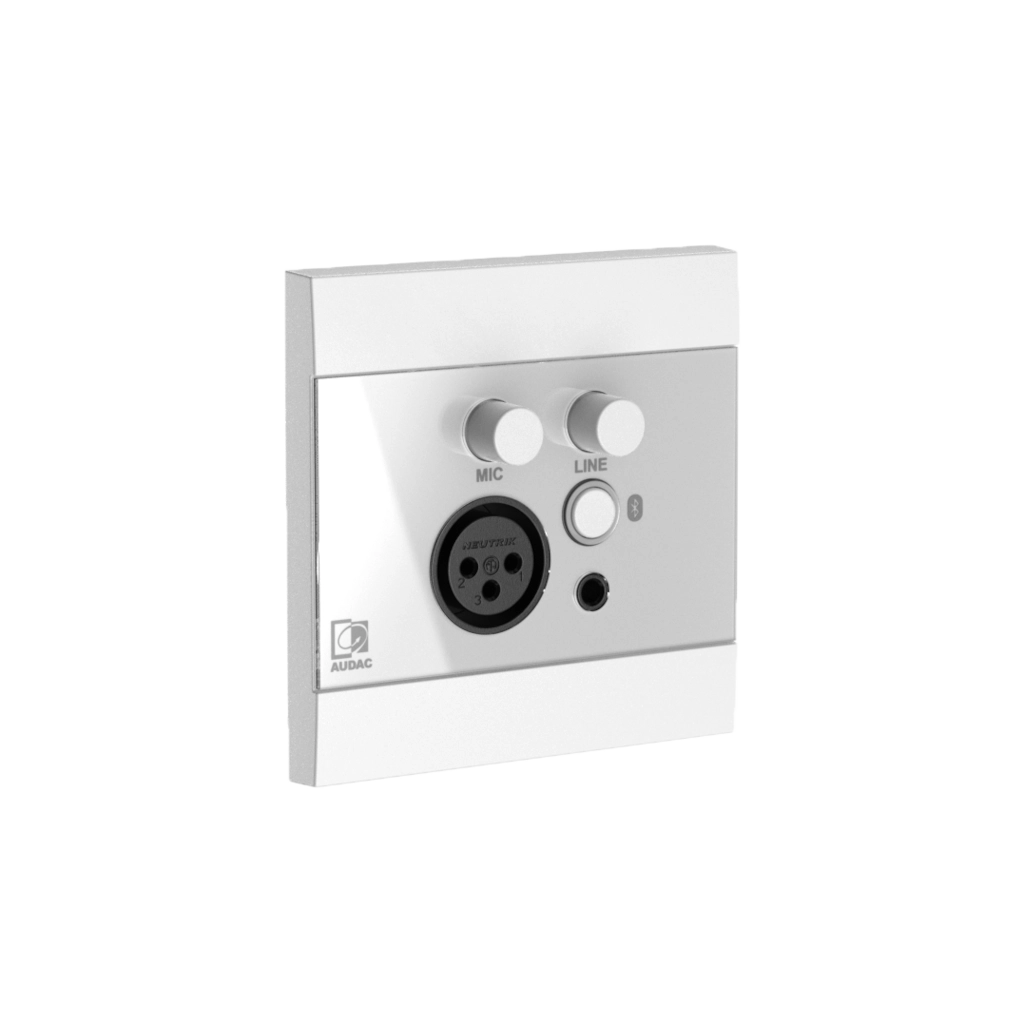

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...
The WP225 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
Please note:
These in-output wall panels are designed for fixed installation applications and are not suitable for use with DJ mixing panel setups. They are intended for balanced audio connections and general-purpose signal distribution, not for high-level, dynamic signal processing typically required in DJ environments.
Highlights:
- Elegant design to blend in with any environment
- Compatible with EU (80x80 mm) installation materials
- Signal transmission over twisted pair (CAT5E) or better cabling
- Signal transmission insensitive for interference and noise
Product Features:
- Dimensions: 80 x 80 mm (W x H) (Remote wall panel)
- Colours: Black (RAL9005) (WP225/B)
- Colours: White (RAL9003) (WP225/W)
- Front finish: Elegant ABS front panel with glass
- Accessories: None
- Accessories: None
- Accessories: None
- Installation standard: Compatible with EU installation materials
- Installation standard: 1-gang US standard (WP225)
Downloads:
- Product manual
- Technical drawing - US version
- Technical drawing - US version
- Technical drawing
- Technical drawing
- STL File
- 3D-PDF
- 3D-DWG
- OBJ File
- STEP File
- AUDAC - The AUDAC Platform
- Manual - Bluetooth rename application
- Installer (APK) - Bluetooth rename application
- AUDAC - WP2XX series
Brand: AUDAC
