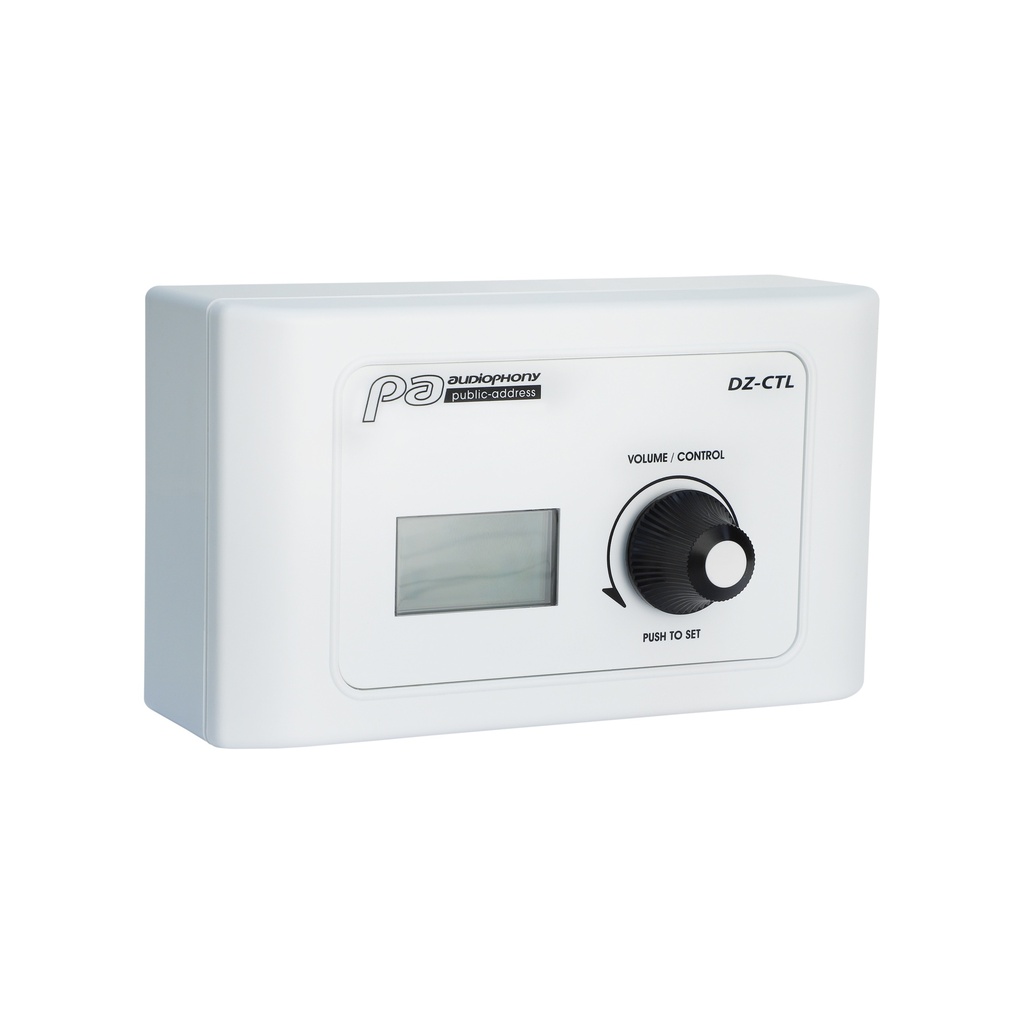

AUDIOPHONY PA - DZ-CTL - DZ-MATRIX input and output volume control box. LCD display to view levels and routing.
- The box allows you to select a source and adjust its volume on a previously chosen output.
- As for its display, it allows you to choose the channel you want to select and then to adjust its volume.
- The control box is connected to digital channels 9/10, 11/12 of the matrix(*).
- DZ-CTL has a RD output on the back to connect other DZ-CTL.
- The DZ-MATRIX Setting Software allows you:
- To change the name of the box with the DZ-MATRIX setting software
- To give access to the sources and outputs in order to limit the settings for the end user
- Password lock and adjustable screen saver
(*) Use shielded CAT5e or CAT6 cable with a maximum length of 100m
LINK FOR FULL INFORMATION: DZ-CTL
