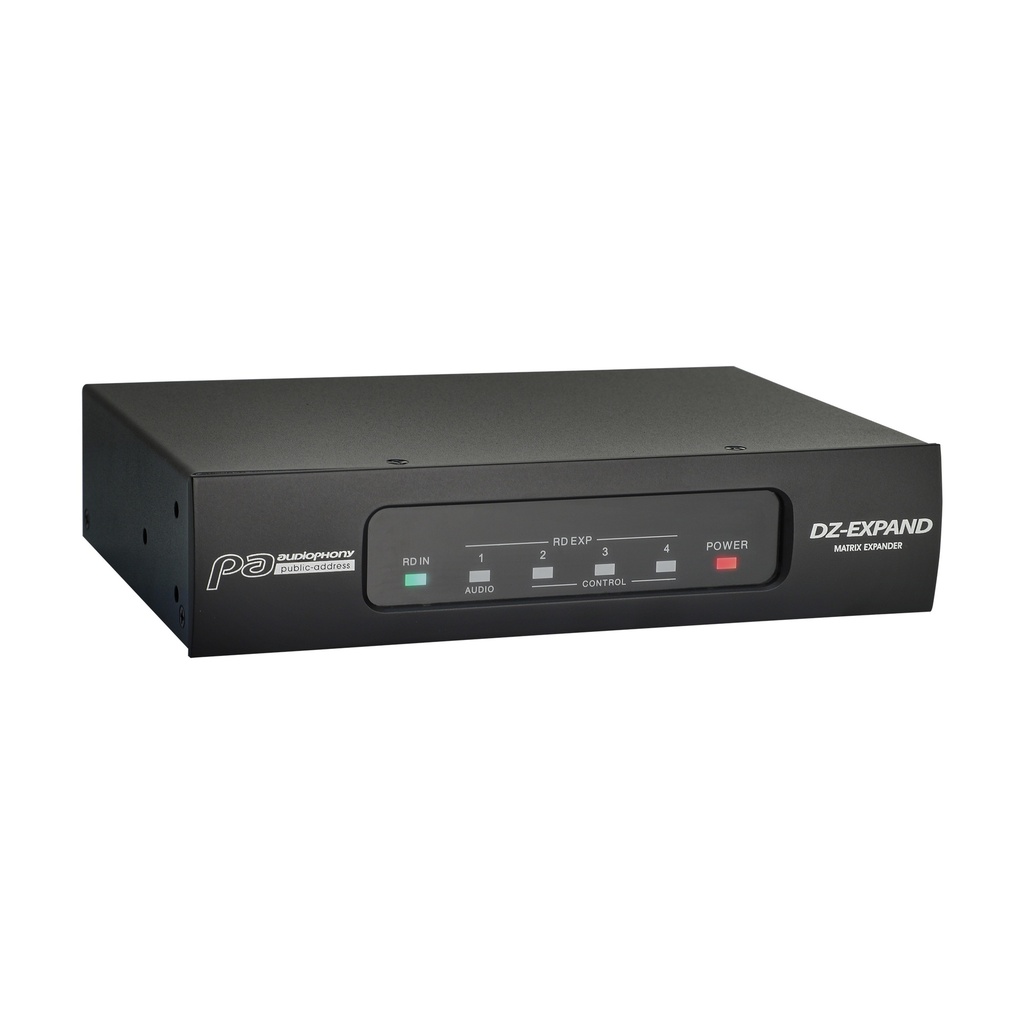

- The box allows the number of controllers that will be connected to the matrix to be multiplied.
- It allows to deport the connections by connecting the controllers in star when the connection to the chain is not possible.

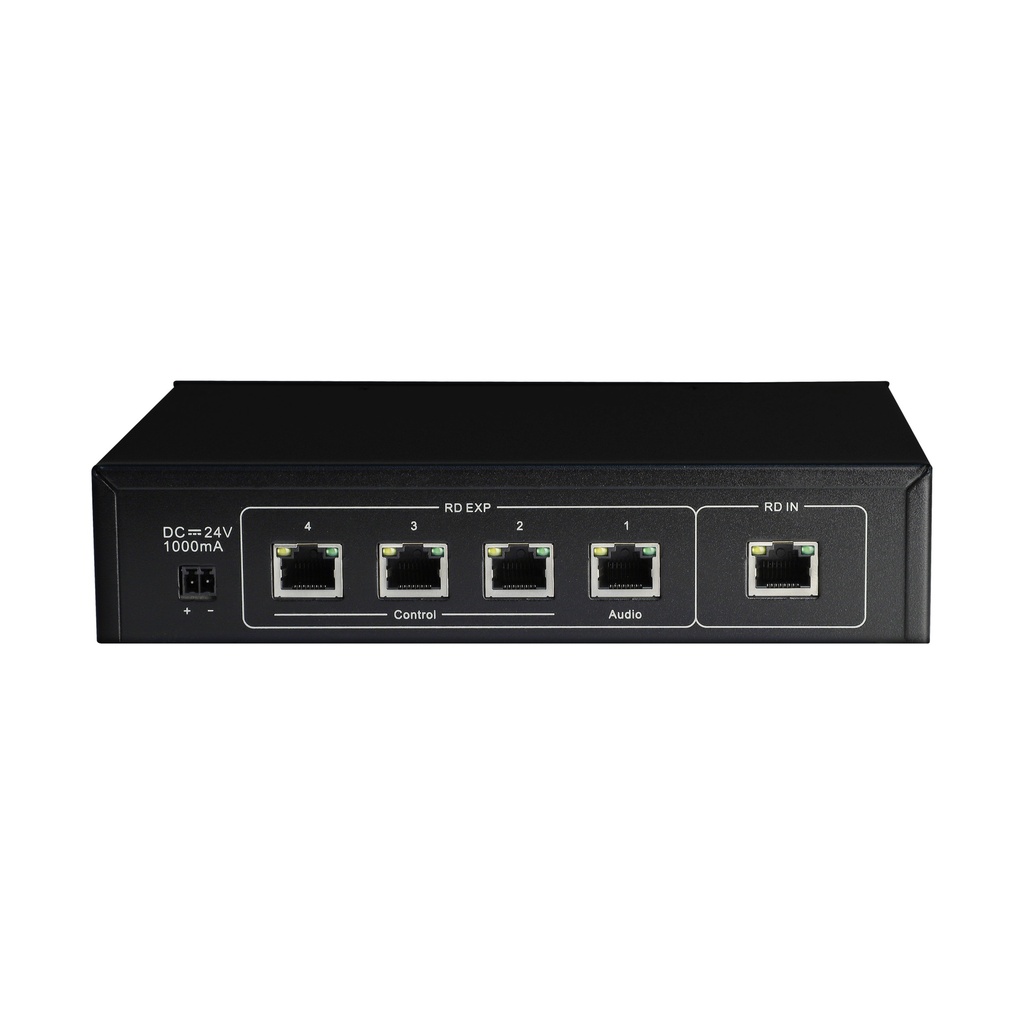

- RD IN port: to connect to the matrix.
- RD EXP ports (1 audio): RD connection for DZ-MICDESK / DZ-CTL2OUT and DZ-BOX22 (remote audio data transport and control devices).
- 2/3/4 Control: RD connections for DZ-CTL / DZ-CTL2OUT (remote device control data only) / DZ-PAD
Power supply: If several controllers are connected or if the distance between the interfaces is large, it will be necessary to supply the box with 24 V DC.
Use shielded CAT5e or CAT6 cable with a maximum length of 100 m between each device.
