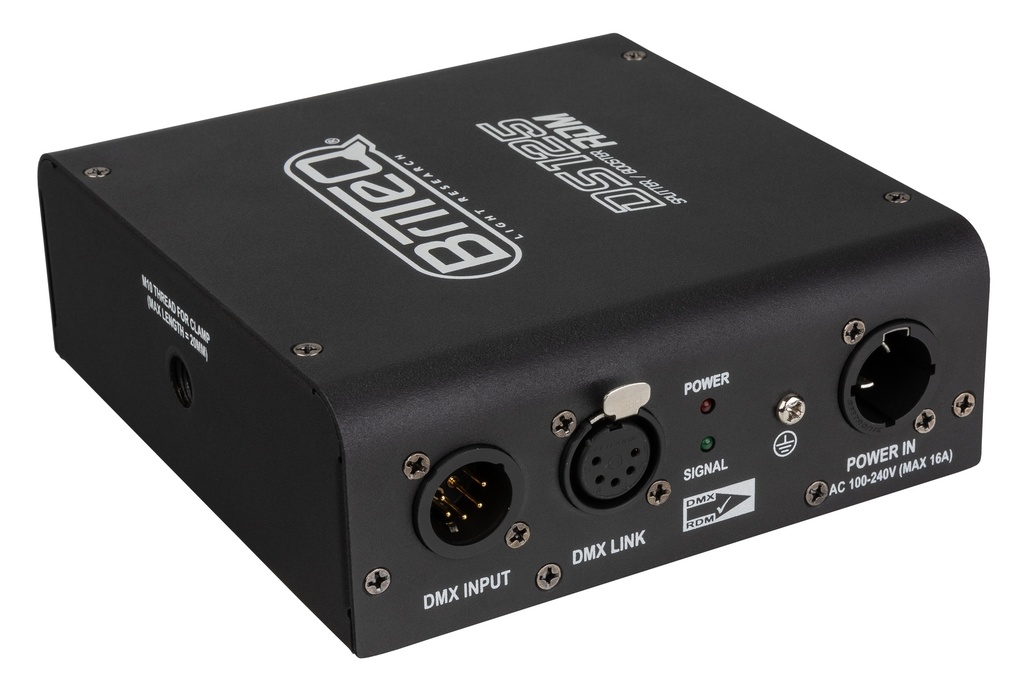

BRITEQ - DS125-RDM - RDM compatible DMX splitter: splits mains power and DMX input into 2 optically separate outputs. Compact and robust, equipped with PowerCON TRUE1 / XLR 5pin.
- The perfect solution for many DMX-line problems: this compact DMX-splitter divides any DMX-chain in 2 separate lines that will not interfere with each other. Problems on 1 line will not influence the other line!
- Maximum security, thanks to complete galvanic isolation between all DMX in/outputs
- 100% RDM compatible for bidirectional DMX-communication
- The booster function makes your DMX-installation more reliable and flexible to set up
- Specially designed for professionals:
- Small size: can be hidden anywhere
- Very robust construction: perfect for the rental applications

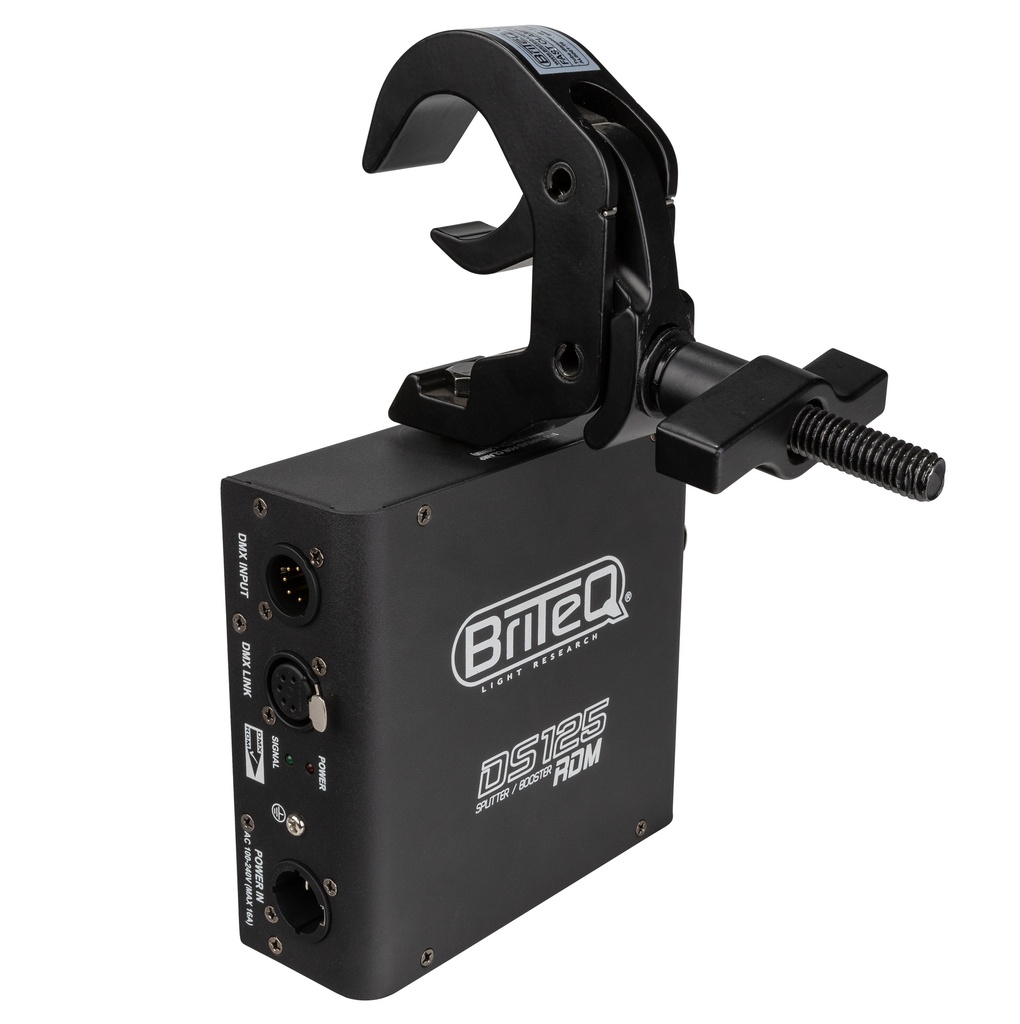

- Can be fitted with any standard truss clamp with M10 thread: easy truss installation
- Adapted for use with HILEC® COMBI-cables (combined power + DMX)!
- Connections:
- 1 input: DMX 5pin (+ DMX pass-through) & 16A PowerCON TRUE1-compliant Seetronic® connector

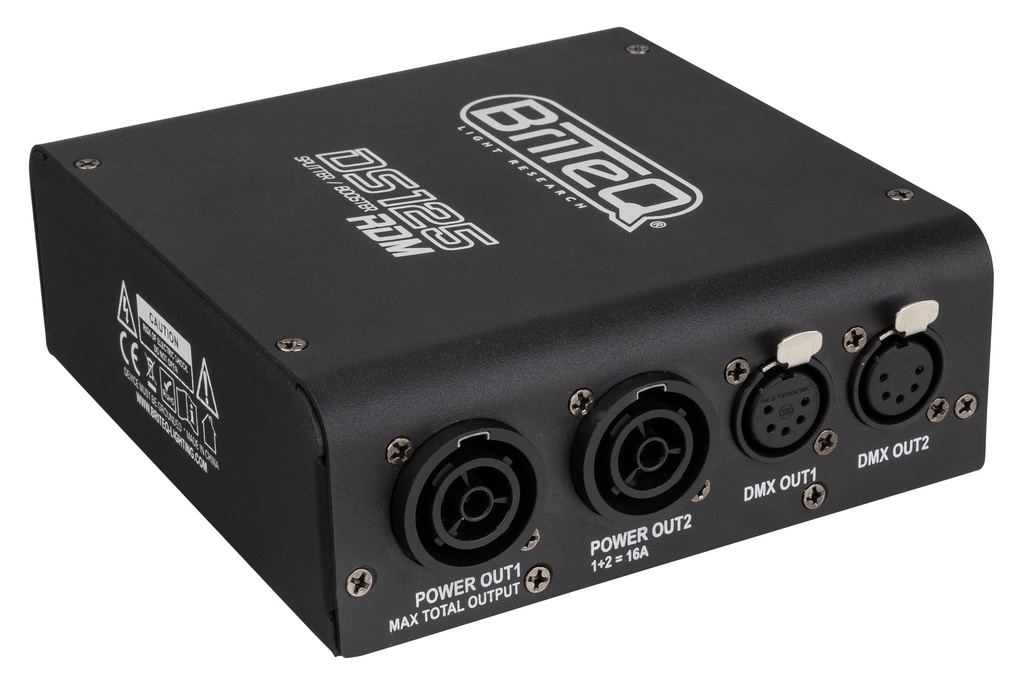

- 2 outputs, each with: DMX 5pin + 16A PowerCON TRUE1-compliant Seetronic® connector
- There is also a model (DS123-RDM) equipped with 16A PowerCON-compliant and XLR 3pin connectors
- Power + signal present indicators
- Internal power supply 100-240Vac
