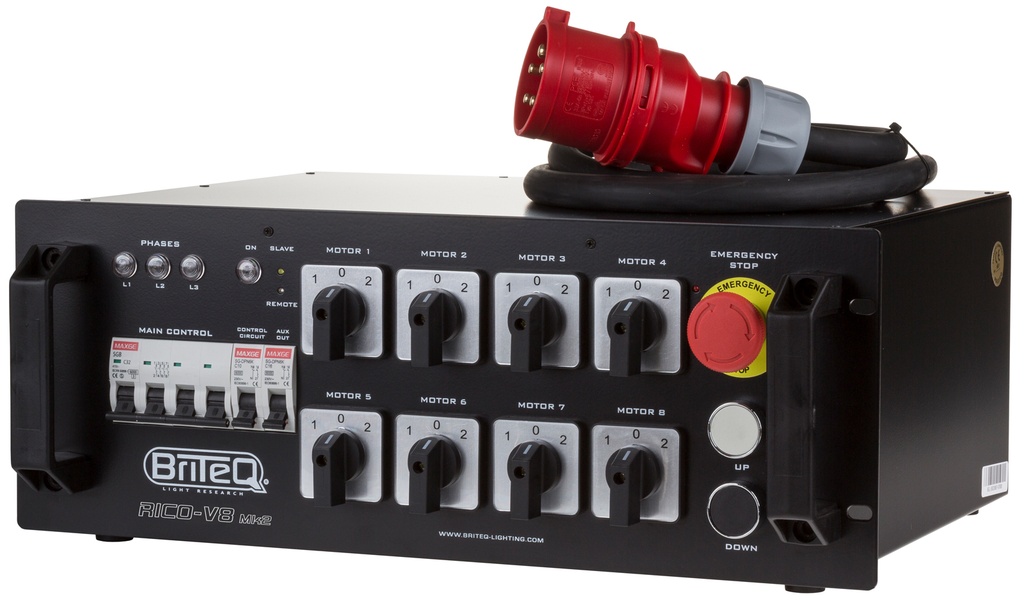

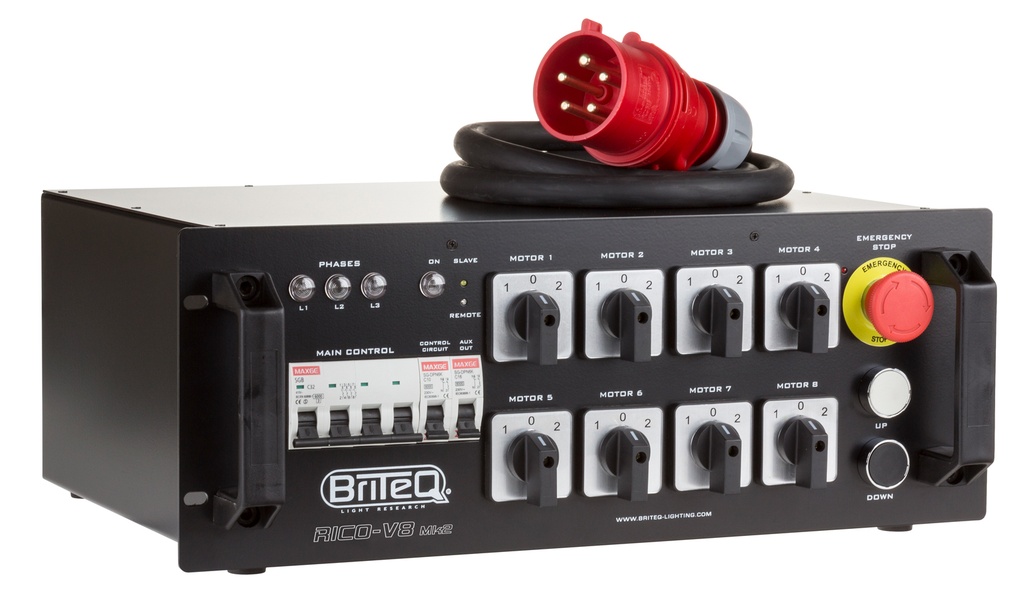

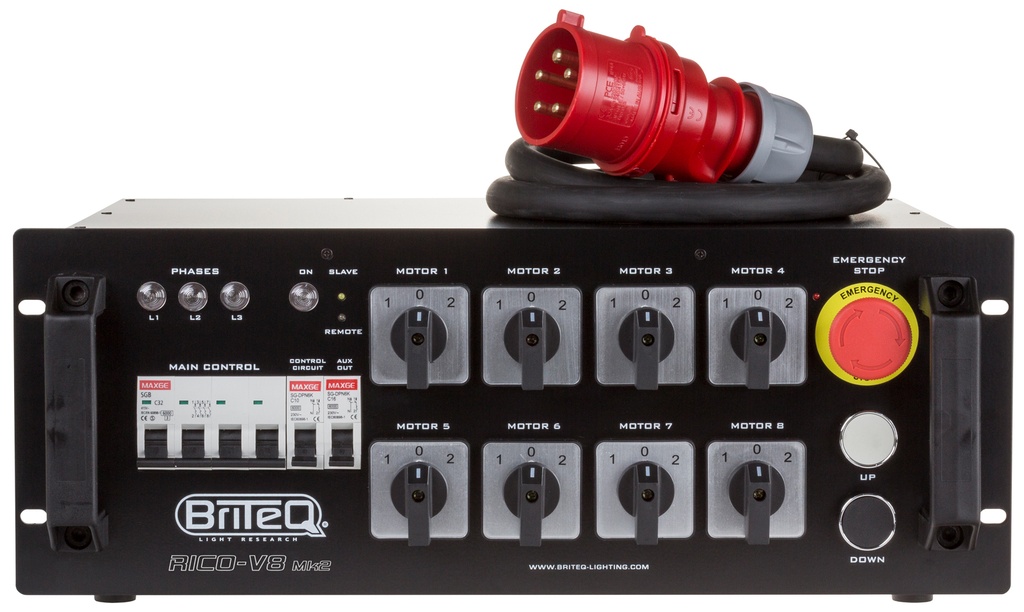

BRITEQ - RICO-V8 Mk2 - 8 channel direct control chain hoist motor controller with separate UP/DOWN-controls and master/slave linking
- Standalone manual chain hoist motor controller for up to 8 separate motors.
- Double safety by using an additional relay backup system that activates in critical situations.
- Fully compatible with the previous RICO-V4 / RICO-V8 models!
- Several units can be linked in master/slave using the link in/out on the back panel:
- Easy control for a larger number of chain hoists
- Simultaneous hoist control using the UP/DOWN buttons on the master controller
- Centralized Emergency stop on the master controller
- “Slave” indicator led
- Manual phase inversion switch for each output.

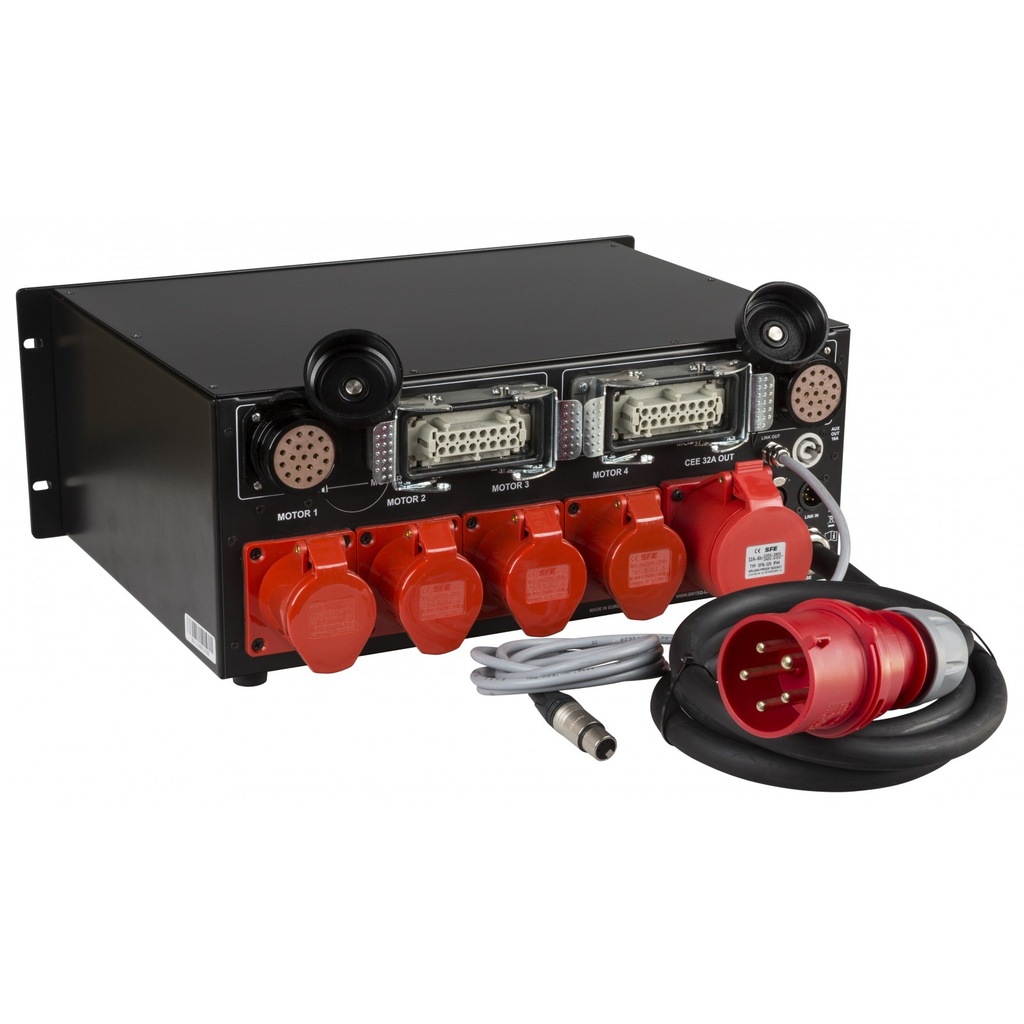

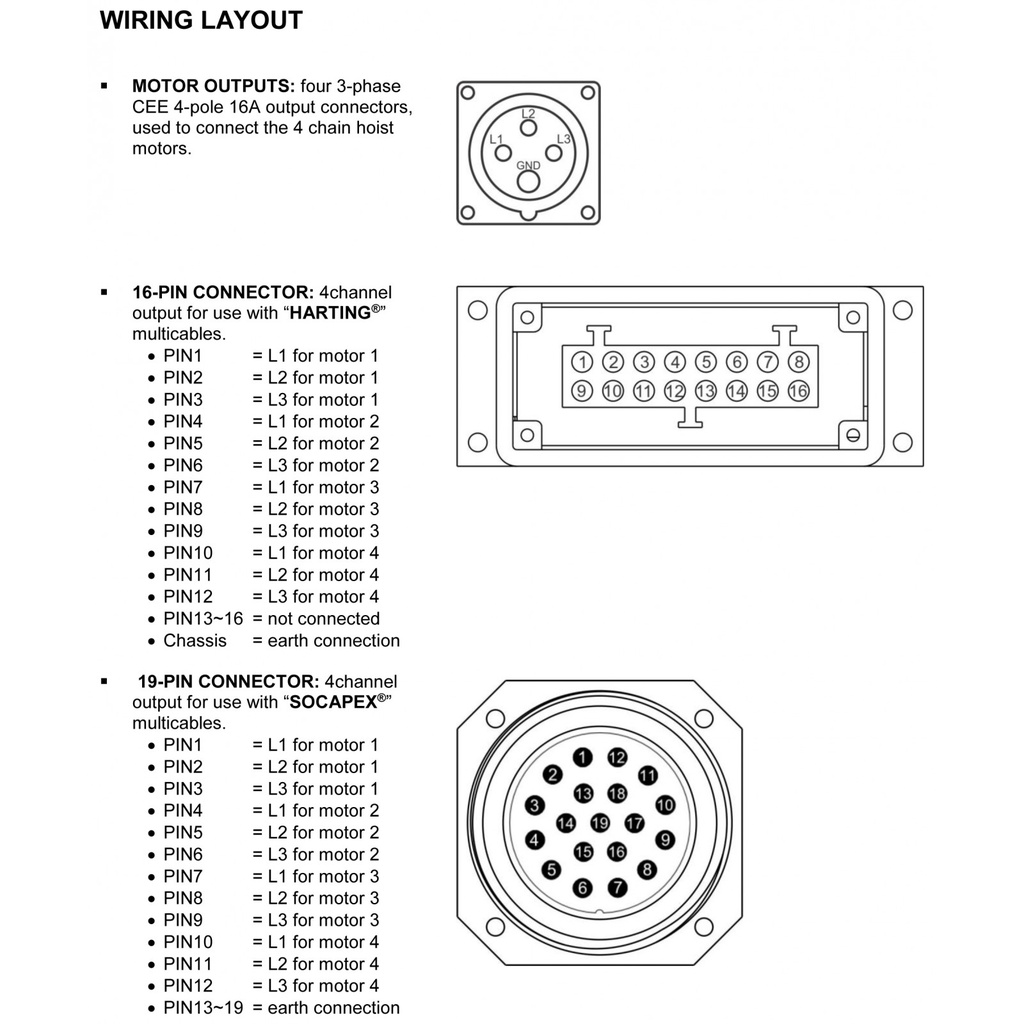

- Choice of different outputs for maximum flexibility (rental companies!):
- 4x individual CEE16 4pole 16A outputs

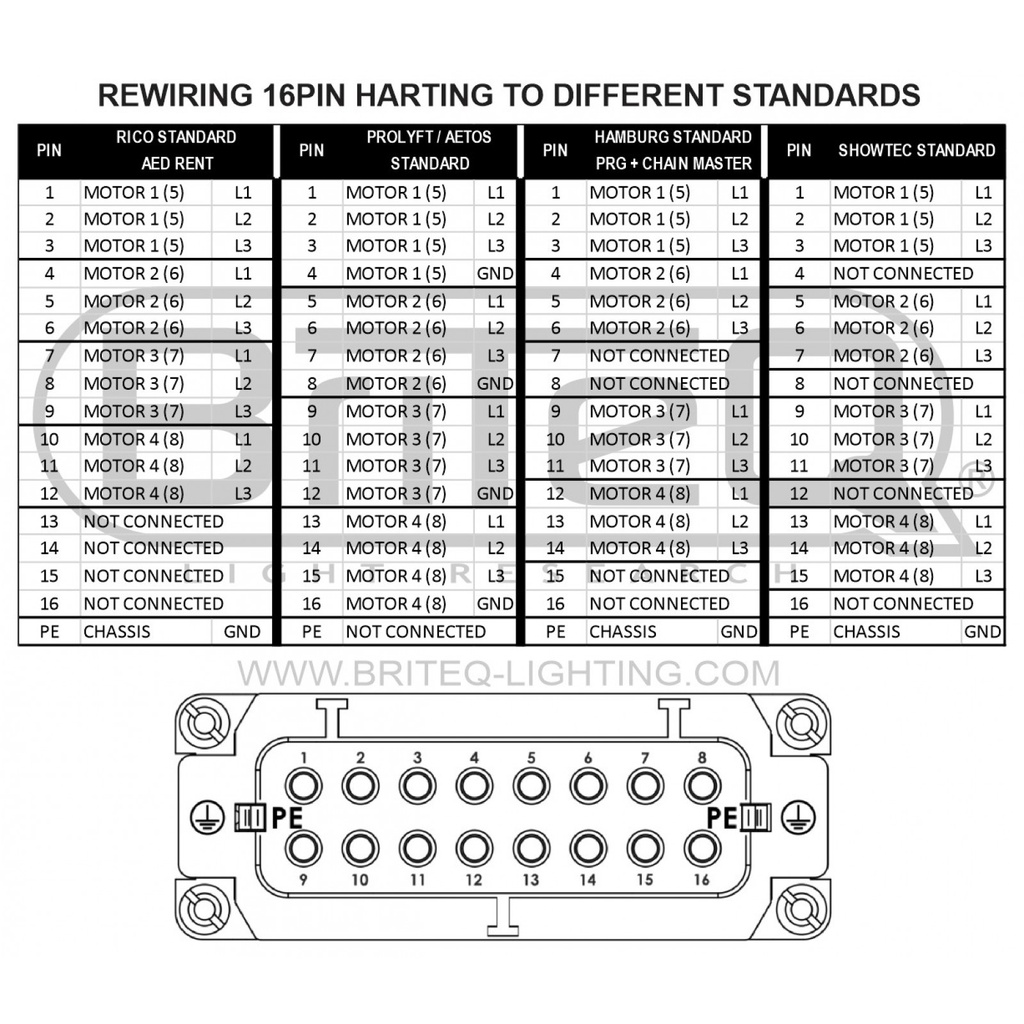

- 2x 16PIN multichannel industrial rectangular connector, Harting® compatible
- 2x 19PIN multichannel industrial round connector, Socapex® compatible
- 1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use
- Remote control input (XLR) with led indicator to connect the optional RICO-REMOTE.
- Phase indicators to easily check if the 3phases are available.
- 32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected.
- C16 (16A - 1P+N) 2-POLE automatic circuit breaker for control circuit.
- Auxiliary output protected by a 16A RCBO with 30mA leakage current protection.
- Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug.
- CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass.
- Extremely robust 19"/4U metal housing.
- Designed and build in Europe to the highest international safety standards!
- Fully complies to EU directives: 2014/35/EU (LVD) and 2014/30/EU (EMC):
- EN 60204-32:2008 (safety of machinery - Part 32: requirements for hoisting machines)
- EN 60204-1:2018 (safety of machinery - Part 1: General requirements)
- EN IEC 61000-6-2:2019 (EMC - Immunity standard for industrial environments)
- EN IEC 61000-6-4:2019 (EMC - Emission standard for industrial environments)
