Description:

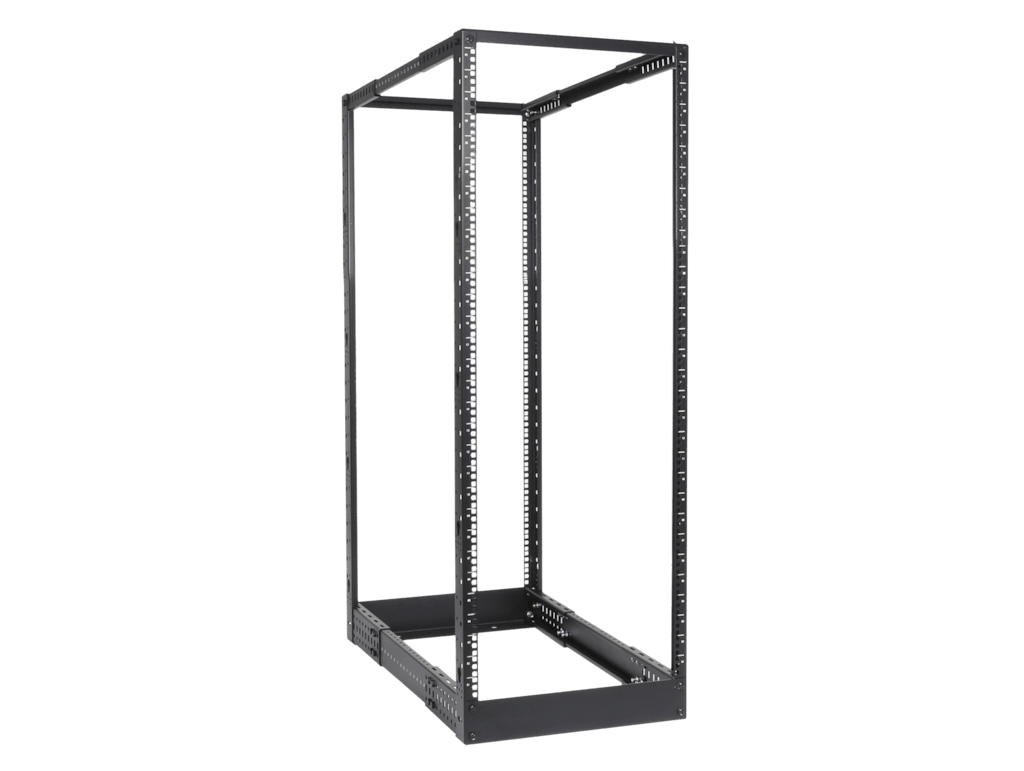

The DPR932 is a professional and solid constructed 4-post open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a sturdy and low-cost solution, suitable for installing up to 32 units of 19” equipment. The open frame construction is made of 2.0 mm thick steel and finished in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators. Adjustable vertical supports allow in depth adjustment within a range of 56 to 102 cm while the base angle profiles can be mounted outwards for increased stability or inwards for conserve floor space. Delivery in a flat-down package allows easy transportation of the rack to any installation location, while the simple structure allows assembly by a single person in a record-breaking time.
Highlights:
- Punched square holes for use with snap-in cage nuts
- in depth adjustable 19” profiles (max 1015 mm)
- Stores up to 32 units of 19” Equipment
- Can carry a max load of 450 kg
- Unrestricted air flow due to open-frame design
- Ships as flat-down package
- Easy assembly in 10 minutes
Product Features:
- Unit height: 32 HE
- Max. usable depth: 550 ~ 1015 mm
- Max. load: 450 kg
- Dimensions: 514 x 1562 x 560 ~ 1020 mm (W x H x D)
- Weight: 20.530 kg
- Colours: Black (RAL9004)
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
Brand: CAYMON
