Description:

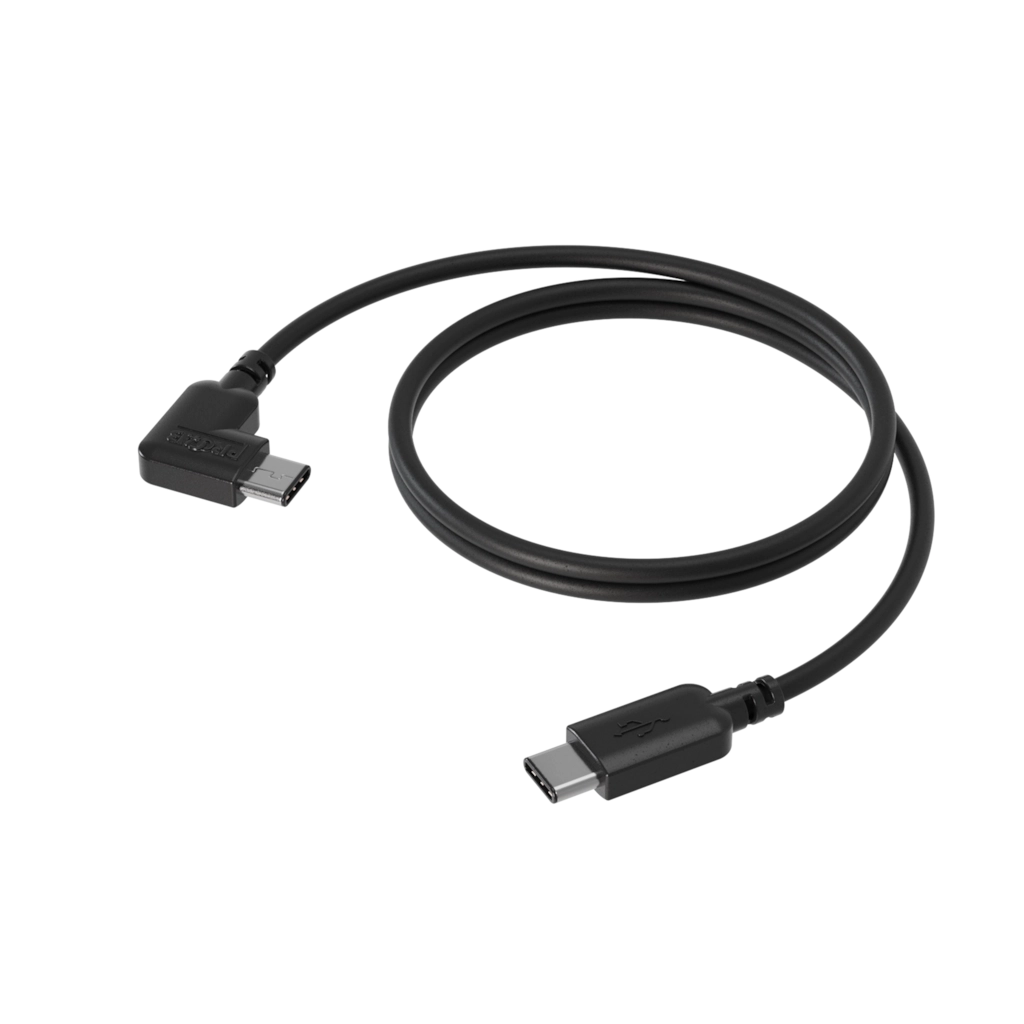

The CSD622 is a Slimline USB Type-C to Angled USB Type-C connection cable, connecting USB 3.2 Gen 2x2 (up to 20 Gbps) compatible devices with each other. The angled connection allows the connection of devices with limited space behind them. The triple-shielded cable with a super slim design of only Ø 5.0 mm offers a clean solution for desktop use and patch connections. This cable is equipped with an E-marker chipset and can be used for data transfer as well as charging USB type-C devices with power delivery up to 100W (20V/5A) or 60W (20V/3A) depending on the length. The cable is fully backwards compatible with USB 2.0 devices.
Highlights:
- Supports USB 3.2 Gen 2x2 - 20 Gbps data rate (up to 1 meter)
- Supports USB 3.2 Gen 1x2 - 10 Gbps data rate (up to 2 meters)
- Fully backward compatible with USB 2.0
- 5A / 20V - 100W power delivery (up to 2 meters)
- 3A / 20V - 60W power delivery (up to 3 meters)
- A/V signals up to 4K @ 60 Hz (up to 3 meters)
- Compact connector
- Angled connector for easy access
- Slim Ø 5.0 mm diameter
- Thin, flexible and smooth cable jacket
- Sustainable TPE outer-jacket material
- LSHF jacket
Product Features:
- Application: AV & IT
- Series: Connect Series
Downloads:
Brand: PROCAB-avit
